Titanium Anode For Aluminum Foil Formation

The formation of aluminum foil is high-purity (99.9% or more) after electrochemical or chemical corrosion, the surface is treated into a sponge-like/tunnel-like structure to increase its surface area, and then the electro-etched foil is anodized to form a Aluminum oxide film with dense layer structure (aluminum trioxide).

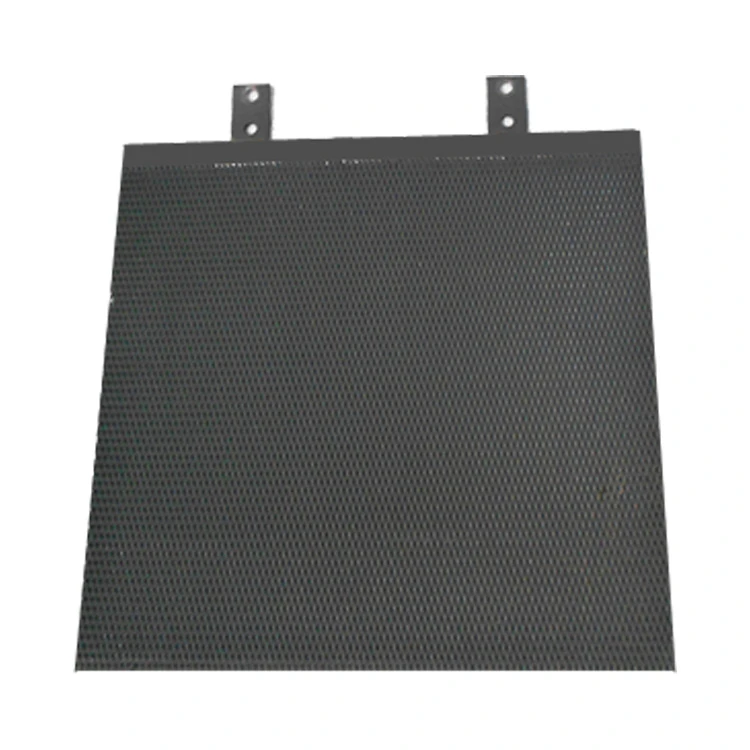

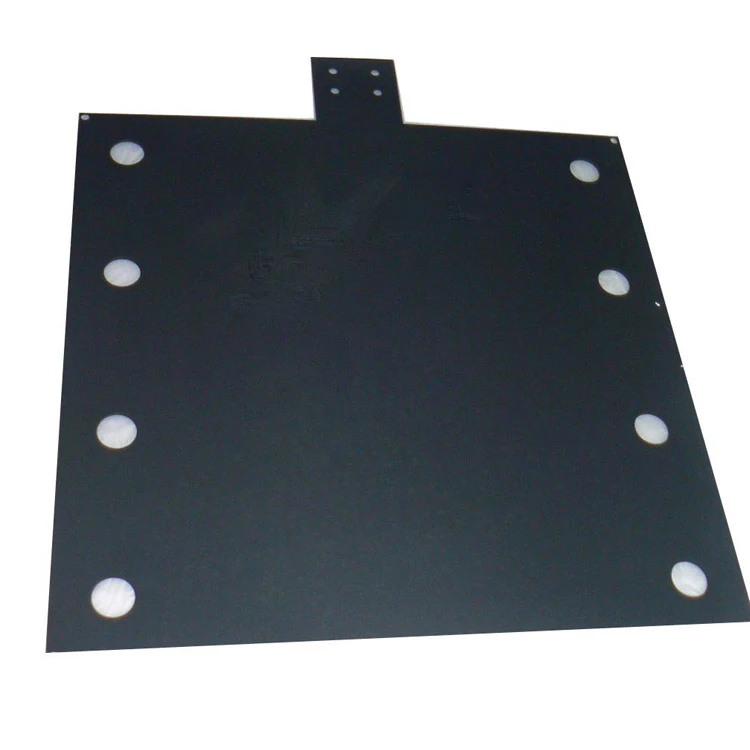

JM-TITANIUM titanium-based coating anode for aluminum foil formation: titanium-based coating liquid conductive electrode and titanium-based coating anode plate.





Base metal	Sulfuric acid concentration range	coating material	Current Density Range	Fluoride ion content
Gr1, Gr2, TA1, TA2	<60%	IrO2+x	＜2500A/m2	＜50ml/L



Aluminum electrolytic capacitors are generally composed of anode foil and cathode foil. The foil used for the cathode of the capacitor is called cathode foil, and the anode foil is also called formed foil. The anode foil is made of more than 99.9% high-purity aluminum, and the foil thickness is 0.03-0.12mm. The withstand voltage ranges from 8V to 800V. Among them, it is divided into low-voltage chemical-forming foils, and the withstand voltage is about 170V or less. 170V ~ 400V is called medium-voltage formed foil, and above 400V is called high-voltage formed foil. Anodized foil is electro-etched by light foil and then subjected to chemical conversion treatment to form an oxide film on the surface of aluminum foil. The anode foil is formed by electro-erosion before formation. The methods include DC electro-etch method and AC electro-etch method. At present, DC electro-etch is the main method, and its formation methods are different due to different voltages. Formation methods currently include constant current formation and constant voltage formation.



JM-TITANIUM is a professional manufacturer of titanium anode plates for aluminum foil formation with 10 years of technical experience. The titanium anode plates for aluminum foil formation it produces have the following advantages:

1. The size of the titanium anode plate is stable, and the electrode spacing does not change during the electrolysis process, which can ensure that the electrolysis operation is carried out under the condition of stable cell voltage.
2. The working voltage is low, the power consumption is small, and the consumption can be reduced by about 20%.
3. Titanium anode has a long working life.
4. Insoluble anode, avoid damage to electrolyte and cathode products, improve product quality.
5. It can increase the current density.
6. With strong corrosion resistance, it can work in many electrolytic media with strong corrosion and special requirements.
7. It can avoid the short circuit problem after the lead anode is deformed, so as to improve the current efficiency.
8. The base titanium material can be used repeatedly.

Therefore, titanium anode for aluminum foil formation has been widely used in high, medium and low voltage formation lines and negative electrode foil production lines.



Baoji JM-TITANIUM company is well aware of the defects and deficiencies of conductive rollers in aluminum foil formation, and has jointly conducted research and development of liquid conductive electrode power supply with domestic aluminum foil manufacturers, and successfully applied it to production. The liquid conducting electrode is suitable for high, medium and low voltage aluminum foil forming lines.





1. Q: Do you have XX model titanium anode?
A: Our titanium anode are all customized, so there are no models, according to your exact drawing, nearly any shape and size we could produce.

2. Q: Can you produce the anode for our XX equipment/generator?
A: Yes, we can.But different clients have different equipment/generator, and need different anode size,so your anode drawing is required.

3. Q: Which coating anode is suitable for me?
A: Your industry please. According to your application environment, we will give you professional advice.

4. Q: How about the anode working current and voltage?
A: Titanium anode could be used for many industries, different industries have different suitable current and voltage take the following into consideration:
The suitable environment for our titanium anode:
Current density: bellow 2000A/M2
Temperature: 40-60℃
There mustn't be any fluorine and cyanide ions in the electrolyte

5. Q: How about the titanium anode lifetime?
A: The titanium anode lifetime for different industry aren't the same, half year to 50 years, according to your exact industry and environment, we will give you the guaranteed lifetime.

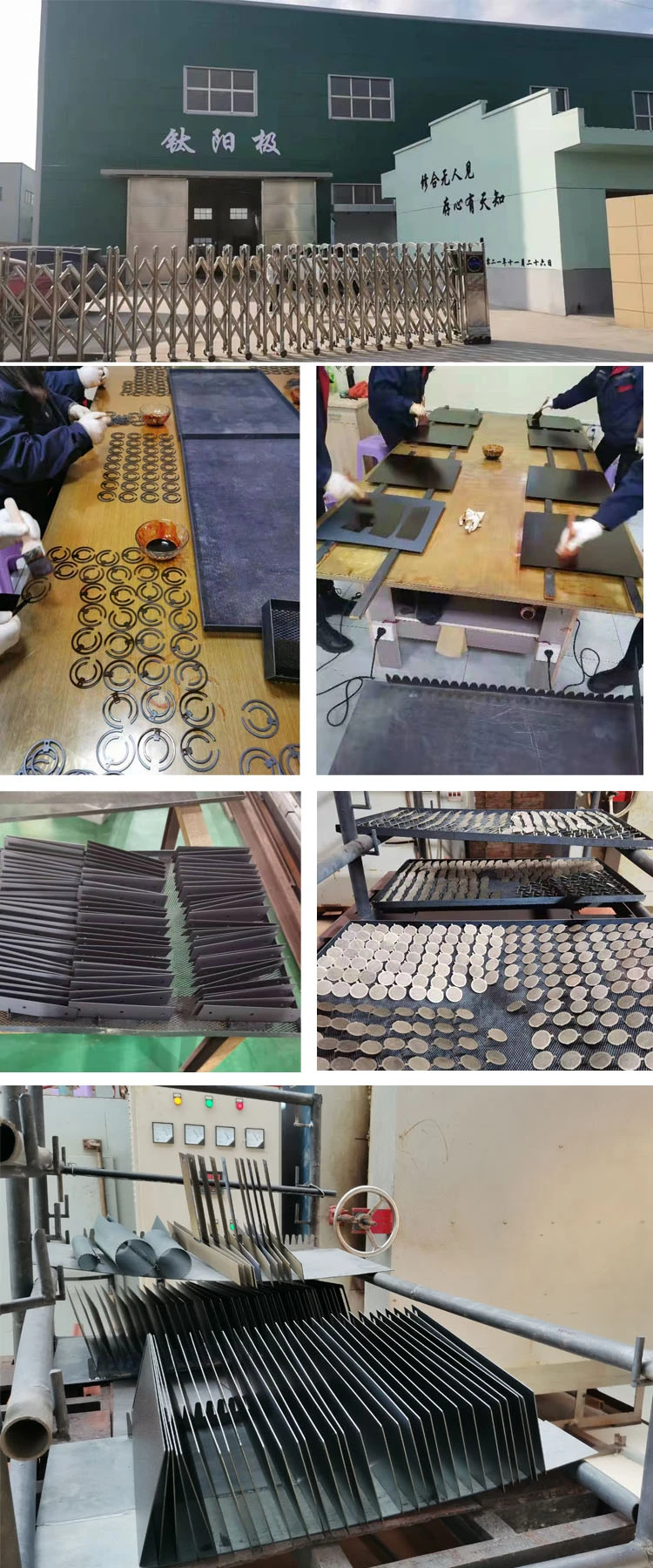

Baoji JM-TITANIUM—Professional anode design and manufacturer

Over the years, we have been specialized in anode research and development, production and manufacturing, and our products are exported to many countries around the world. Various series of anodes can be designed and produced according to the actual environmental parameters of different users. You are welcome to visit and negotiate.
