Products Description
Woven titanium mesh
Woven titanium mesh is primarily used for screening and filtration in acidic and alkaline environments, as well as for gas and liquid filtration and separation of other media.
Based on color classification, it is divided into black titanium mesh and white titanium mesh, the difference being the presence or absence of a graphite emulsion coating.
Weaving methods include plain weave, twill weave, and close weave. It is mainly woven from pure titanium wire (gr1 gr2) and features high temperature resistance, low density, high strength, and corrosion resistance.
Product Features
Titanium woven mesh
1.It has precise filtering performance, uniform mesh size, strong compressive strength, and no deformation.
2.Good corrosion resistance, with a corrosion rate reduced to 0.001mm/a in a 60% nitric acid solution, replacing stainless steel, aluminum mesh, etc., with a long service life and low cost
3.Lightweight, high mechanical strength, low elongation, high elasticity, maintaining stability under dynamic loads
4.High temperature resistance, able to maintain the product unchanged in an environment of 600 ℃
Product image
300 mesh ti mesh
White titanium mesh
Black Titanium Mesh
Woven titanium mesh
Specification parameters of titanium wire mesh
| Mattress Size | Wire diameter | Aperture | Mesh number | Wire diameter | Aperture |
| 2.3 | 1mm | 10mm | 50 | 0.15mm | 0.328mm |
| 4 | 1mm | 5mm | 60 | 0.15mm | 0.273mm |
| 6 | 1mm | 3mm | 80 | 0.1mm | 0.2mm |
| 8 | 1mm | 2mm | 100 | 0.1mm | 0.154mm |
| 10 | 0.5mm | 2.04mm | 120 | 0.09mm | 0.1mm |
| 20 | 0.3mm | 0.97mm | 150 | 0.06mm | 0.1mm |
| 30 | 0.25mm | 0.59mm | 200 | 0.05mm | 0.07mm |
| 40 | 0.2mm | 0.435mm | 300 | 0.8*0.25mm | 0.065mm |
| Customization is supported for other specifications and sizes | |||||
| Type | Structural Characteristics | Structural Characteristics | Structural Characteristics |
| Twill weave | The warp and weft threads have the same diameter, and the square mesh is evenly distributed | Universal filtration (acid/alkali/gas) | 8-400 mesh, aperture 0.06-25.4mm |
| Twill weave | The wire diameter is thicker, the mesh surface has diagonal lines, and the strength is higher | Petroleum, chemical, aerospace high-pressure environment | Wire diameter above 0.1mm |
| Dense weave | The filtration accuracy is determined by the inscribed circle due to differences in diameter/weft diameter | High precision filtration (such as in pharmaceuticals and laboratories) | Wire diameter above 0.1mm |
| Note: The mesh width can be customized (usually 1-1.2m), and special structures such as diamond shaped holes require titanium plate stretching technology | |||
White Titanium mesh vs black Titanium mesh

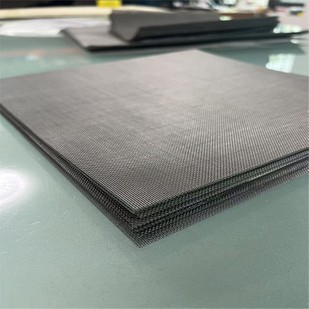

White titanium wire mesh
The surface of the white titanium wire mesh does not contain any impurities and is suitable for use in ion membrane electrolysis cell titanium mesh anodes, anodizing experiments, catalyst support nets, pure chemical liquid filtration nets, and other non contaminated solution filtration.

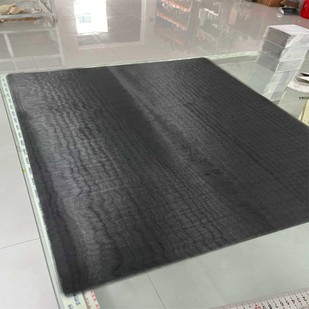

Black titanium wire mesh
The surface of the black titanium wire mesh contains a brushed graphite emulsion coating, which is suitable for use in seawater desalination titanium filters and chemical filtration. The surface coating can slow down the erosion of the titanium substrate and extend its service life.

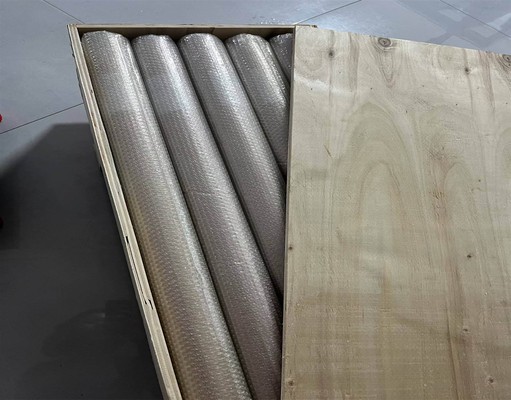

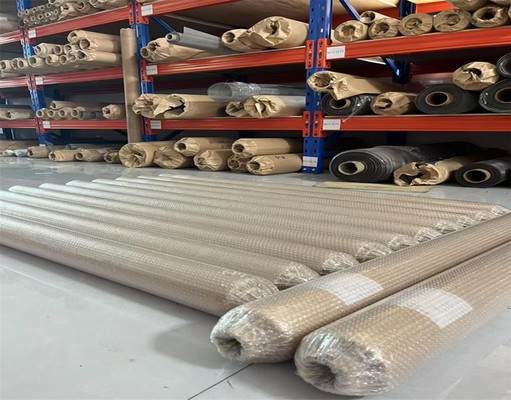

product packaging
