Products Description
What is the titanium basket?

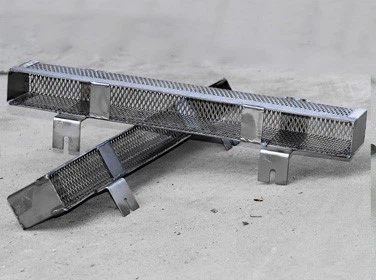

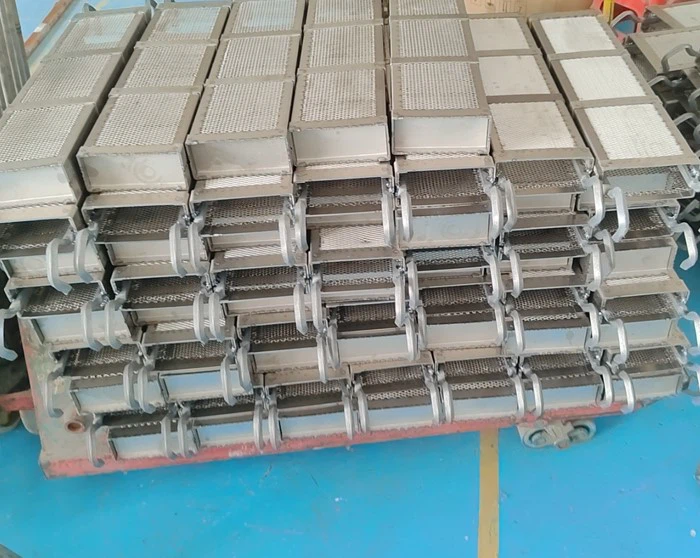

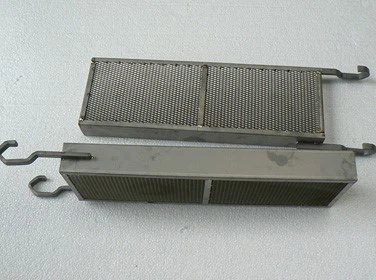

Titanium basket is a kind of hanger used to hold anodes on electroplating equipment (for example, in nickel electroplating, the titanium basket is filled with nickel cakes as anodes, and the cathode is the plated parts. If copper is plated, the titanium basket is placed with copper balls as anodes, and the cathode is the plated parts. After direct current is passed, the anodes in the titanium basket will dissolve, while titanium is very stable and will not be dissolved, so titanium is often used as a hanger for anodes).
| Material | Pure titanium |
| Dimension shape |
Different dimension and shape is available,make according to the customized design and drawing |
| Specification | Sand blasting, Acid washing and Brush Coating |
|
Main Working
Parameters
|
I. Current density<2000A/M2. II. Temperature<60°C. III. PH 0.1~14. IV. Max content of Fluoride ion is 200PP |
| Main Characters |
I. Dimensionally stable II. MMO coating is insoluble. III. Energy-saving and high efficient. IV. High current efficiency and catalytic. V. Operating voltage is stable. VI. Long service life. VII. Light weight |
|
1. Hight anti-corrosion property 2. Lasting working life 3. Keep the operating voltage stably 4. High current efficiency 5. High catalytic property |
|
| Production Method | Cutting, welding, bending,etc. |
| Features | Toughness, light weight,Stability dimension |
| Lower electricity consumption, high catalytic | |
| Strong corrosion resistance, long working life | |
| High property of acid and alkali resistance, | |
| Bear high & low temperature, etc. |
Products Description
What is the role of titanium basket in electroplating?
Lorem ipsum dolor sit amet consectetur adipisicing elit.
1.Loading anode materials
During electroplating, the anode materials need to be placed somewhere. The titanium basket is like a great little basket that can hold the anode materials steadily. Just like when we want to take things out, we need a bag to hold them. The titanium basket is the "exclusive bag" for the anode materials. In this way, the anode materials can stay where they should be and participate in the electroplating reaction.
2.Uniform release of ions
The structural design of the titanium basket is very clever. It allows the anode materials to release ions more evenly during the electroplating process. If you think about it, if the ions are not released evenly, the electroplated things will definitely be thick here and thin there, just like when we apply nail polish, it will be ugly if it is not applied evenly. The titanium basket is like a little housekeeper, allowing the ions to come out in an orderly manner, so that the electroplating effect will be very uniform and the quality will be improved.
3.Prevent the generation of anode mud
During the electroplating process, if there is no titanium basket, the anode material may produce some impurities, that is, anode mud. This is just like when we cook, if the pot is not good, it is easy to get stuck and produce dirt. Titanium basket can reduce the occurrence of this situation. It can protect the anode material and reduce the production of anode mud, so as not to affect the quality of electroplating.
4.Improve electroplating efficiency
Because the titanium basket can release ions evenly and prevent anode mud from disturbing the process, the entire electroplating process is smoother and more efficient. Just like when we run, if there are no obstacles and we breathe evenly, we will definitely run fast and well. The titanium basket is the "helper" in the electroplating process, which can increase the electroplating efficiency.
Instructions for use
How to use the electroplating titanium basket
Lorem ipsum dolor sit, amet consectetur adipisicing elit.
1. The conductivity of the titanium basket is poor. Generally, the current of the hook outside the water is not more than 0.26A/MM2, and the current of the hook not in the water is not more than 1.5A/MM2. When the titanium basket hook is found to be significantly hot, the number of titanium baskets can be increased or the cross-sectional size of the titanium basket hook .
2. The titanium basket hook and the electrode are generally not in contact with a flat or round surface.
3. The titanium basket mouth should be slightly higher than the liquid level to prevent the anode slag from flowing out.
4. The lower end of the titanium basket should be 100-MM higher than the part to avoid excessive current concentration on the lower part, causing burning.
5. The titanium basket should be in close contact with the anode, otherwise the anode point on the titanium basket will rise sharply, causing oxygen and chlorine reactions on the surface of the titanium basket, causing damage to the titanium basket and oxidation of the additive.
6. Since the bag is usually used for a long time without being removed, it is recommended to use the "double bag" method.
7. The anode bag should be tightly wrapped around the titanium basket mouth, and a few centimeters of space should be left at the bottom of the bag to store possible anode sludge.
Electroplating titanium basket bag
Electroplating titanium basket bag
Lorem ipsum dolor sit amet consectetur adipisicing elit.
What is the role of titanium basket bags in electroplating?
The function of the titanium basket bag for electroplating is to filter the impurities in the anode and to make the metal ions precipitated from the anode distributed more evenly when entering the plating solution. It is usually put outside the anode titanium basket, so it is called a titanium basket bag. It is usually made of non-woven lint material, and its appearance is similar to that of the titanium basket, but slightly larger than the titanium basket. 2-4 cloth ropes are sewn on the opening to tie it up and prevent it from slipping.
Things to note when using titanium basket bags:
The materials used to make titanium basket bags should be chemically stable in the electrolyte used. When using a metal frame, pay attention to insulation (conductive materials that do not dissolve, such as nickel-plated anode titanium basket). Due to the use of titanium basket bags, the resistance is increased when the current passes through, which will increase the cell voltage, so the titanium basket bag should be cleaned once every 1-2 months.
Company information
Titanium baskets are used in the electroplating industry to effectively control the ratio of anode to cathode. The anode has good solubility, produces less cation mud, and is easy to load or replenish.
Baoji Dynamic company can supply all kinds of size Titanium Basket for electroplating industry.

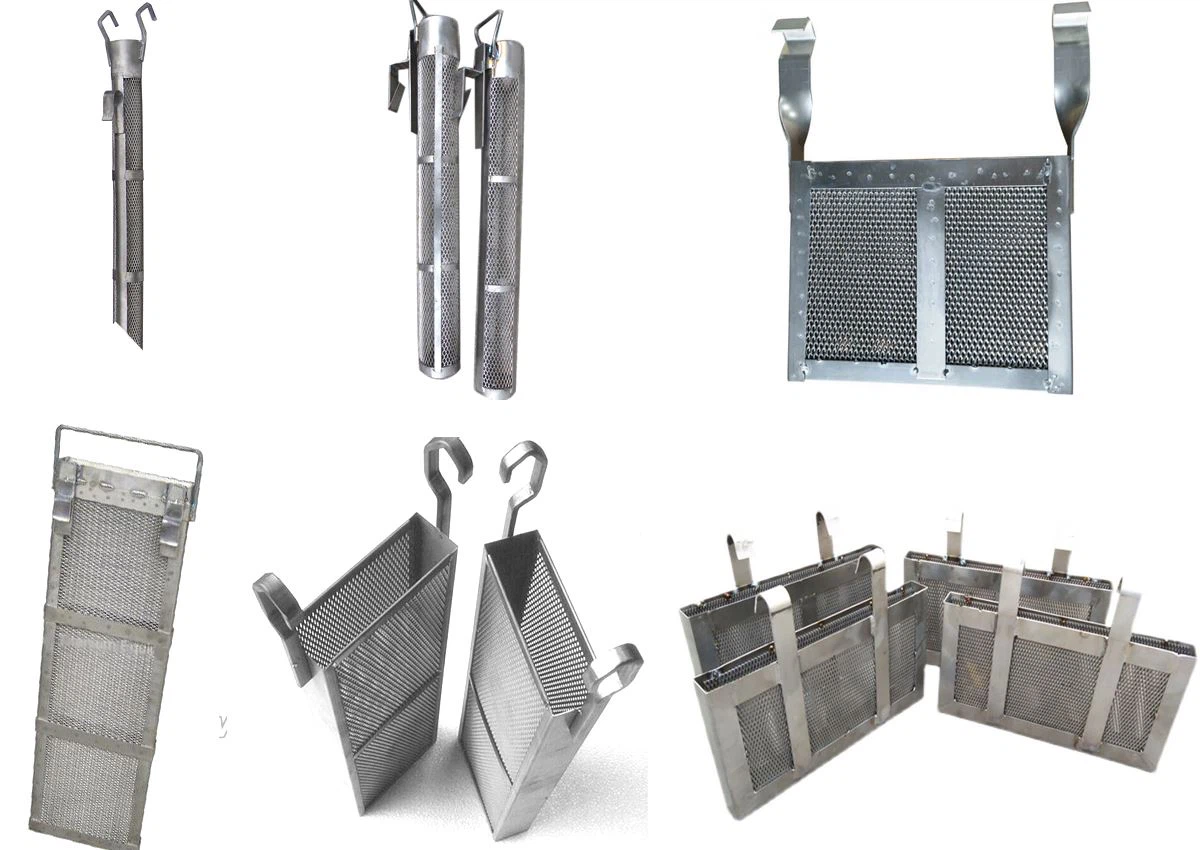

Our company produces titanium mesh baskets, titanium plating tanks, and titanium hangers, which are suitable for corrosion engineering in the electroplating industry. Especially the anode titanium mesh baskets, which are more widely used.
FAQ
Common Problem
What is the service life of Titanium Basket for Electroplating?
Titanium basket are generally consumables! But the quality of titanium is related to the service life.
How many titanium baskets does a small electroplating plant usually use?
This depends on the size of your production line and how many goods you want to hang in one tank.
What is the role of titanium basket in electroplating?
It acts as a carrier anode, mainly because titanium is relatively inert and forms a dense oxide film in the plating solution that does not dissolve.
Can I get a sample of the titanium basket?
Of course you can get the titanium basket samples. We have no minimum order quantity requirement for titanium baskets. We also support customized processing of 1 piece.
