Titanium Rod Medical

Our company has perfect processing equipment and rich experience in material processing. All the surgical implants and medical titanium rods produced have been tested by the third party (chemical composition, mechanical properties, metallostructure, tolerance), and the polished rod has been inspected through flaw detection, so the product quality is completely guaranteed.

Application of titanium rods in medical treatment

With the development of titanium industry, more and more fields are finding applications for titanium products.And the titanium rod is one of the best.

(1) Titanium rod for medical use Titanium, as an emerging material, has been used for decades in the global pharmaceutical industry, surgical instruments, human implants and other medical fields, and has achieved great success.

(2) the human body should be caused by trauma, tumor bone, joint injury, the use of titanium and titanium alloy can be made of artificial joints, bone plate and screws has been widely used in clinical.It is also used in hip joint (including femoral head), knee joint, elbow joint, metacarpophalangeal joint, interphalangeal joint, mandible, artificial vertebrae (spinal orthoses), pacemaker shell, artificial heart (heart valves), artificial dental implants, and titanium mesh in skull plastic and so on.

(3) The material requirements of titanium rod implants for medical use can be classified into three aspects: the biocompatibility of the material with human body, the corrosion resistance of the material in human environment and the mechanical properties of the material.

Our main products

(1) titanium and titanium alloy rods for surgical implantation, high precision titanium and titanium alloy rods

(2) Titanium straight wire and plate for bone traction and external fixation

(3) titanium alloy bars for aviation and industrial use.

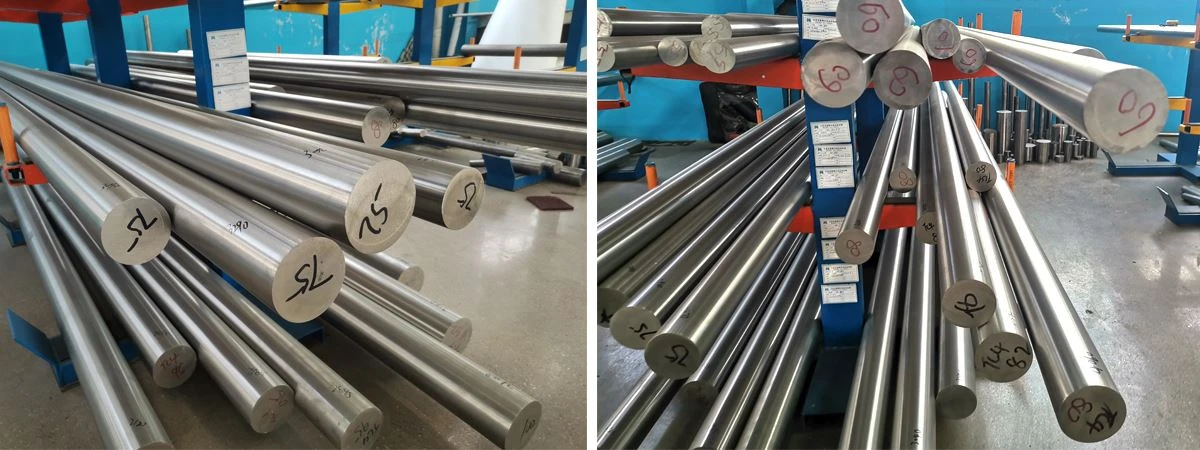

ASTM F67/F136 Medical Titanium Rod

Brand	Ti6AL4VELI GR1, GR2, GR5
Specifications	rolling ￠8.0-- 40mm× L;Forging ￠40-150 - mm x L
Metallographic structure	pure titanium grain size is not less than grade 5, TC4 titanium alloy in line with A1-A9
Surface	black surface, polished surface, polished surface (H11, H9, H8)
Executive standard	GB/T13810-2007,ASTM F67/F136

Medical titanium rod use matters needing attention?

1. The chemical composition of the product is in accordance with the provisions of the corresponding brand in GB/T3620.1, and the H content in pure titanium, GR5 and GR5 ELI should not be more than 0.010%.The allowable deviation of chemical composition shall conform to GB/T3620.2 during the demander's reinspection.

2. Dimensions and allowable deviation

Dimensions of products shall be measured with measuring tools of corresponding accuracy, and positive and negative tolerances shall be guaranteed according to customer requirements.

3. High and low multiple organization

The inspection shall be carried out according to GB/T5168.No cracks, pores, metallic or non-metallic inclusions or other visible defects are allowed on the transverse low power of the medical titanium rod.The transverse microstructure of pure titanium rod in annealing state should be uniform, and the grain size should not be less than grade 5.The high - power microstructure of medical titanium alloy rod under annealing condition should conform to A1~A9.
