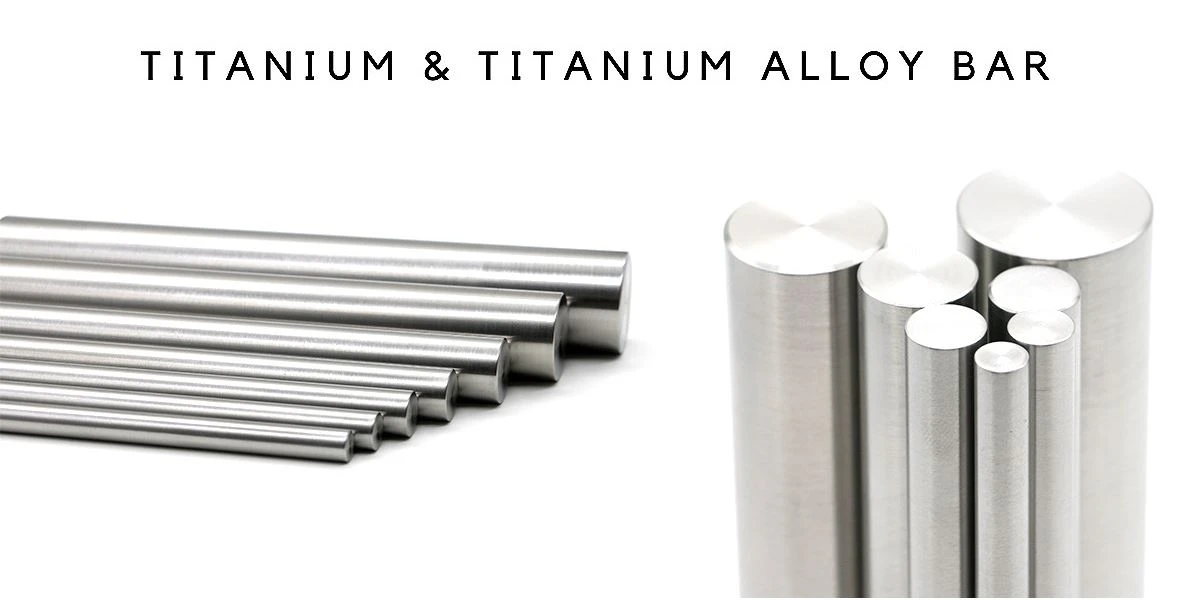

What is a titanium rod?
A titanium rod is a rod made of titanium;Titanium rods can be composed of pure titanium, can also be a pure titanium and other alloys such as aluminium or a mixture of vanadium, has many excellent properties, such as low density, high melting point, high specific strength, good corrosion resistance, high temperature and low temperature performance, nonmagnetic, low noise and vibration damping characteristics, good biocompatibility, good compatibility and carbon composite materials, superconducting characteristics and absorption properties of shape memory and hydrogen, called "space metal" and "metal", developed the aerospace, Marine, chemical industry, metallurgy, electric power, biological materials, sports leisure industry, automobile and other fields has become more and more widely used.
Specifications | Dia.: 3mm-300mm (0.12"-12"), , Length: 50mm-6000mm (2.0"-236") |
Materials | Gr.1, Gr.2, Gr.4 ,Gr.5, Gr.7, Gr.9, Gr.12, Gr.23, Nb, Zr, Ni, etc. |
Standard | ASTM B348, ASTM F136, ASTM F67, AMS 4928, etc. |
Surface | Polished or Machined |
Shape | Round, Flat, Square, Hex |
MOQ | 5KG |
Lead Time | 3 to 5 days for the inventory bars; 15 to 25 days for the bulk orders |
Testing | ultrasonic flaw detection, The Third Party Test Report, etc., per request. |
Application | Aircraft engines and parts, chemical equipment parts (reactors, pipes, heat exchangers and valves, etc.), ship hulls, bridges, |
Package Method | Plastic or foam paper inside, carton or plywood case outside, or according to client's demand. |
| Grade | Tensil strength(min) | Yeild strength(min) | Elongation(%) | ||
Ksi | MPa | Ksi | MPa | ||
| 1 | 35 | 240 | 20 | 138 | 24 |
| 2 | 50 | 345 | 40 | 275 | 20 |
| 3 | 65 | 450 | 55 | 380 | 18 |
| 4 | 80 | 550 | 70 | 483 | 15 |
| 5 | 130 | 895 | 120 | 828 | 10 |
| 7 | 50 | 345 | 40 | 275 | 20 |
| 9 | 90 | 620 | 70 | 438 | 15 |
| 12 | 70 | 438 | 50 | 345 | 18 |
What is Test titanium bar?
Eddy current testing, magnetic flux leakage testing, and ultrasonic testing can be used individually or in combination to test the defects and integrity of round and square rods, depending on test requirements, conditions, and material types.These testing methods can be applied to nondestructive testing of carbon steel, stainless steel alloy, aluminum, titanium and other nonferrous metal rods.Including hot rolling bar, peeling bar, cold drawing bar, grinding bar, etc.
Titanium Grade 5 (6AL-4V)is an alloyed titanium product containing 6% Aluminum and 4% Vanadium; is a medium strength product. This titanium grade is predominantly used in airframe and turbine engine parts; and for use in surgical implants. Technical Info Titanium 6AL – 4V ELI is an alloyed titanium product containing 6% Aluminum and 4% Vanadium, ELI (Extra Low Interstitial).
The common titanium alloy grades’ are Gr5,Gr7,Gr9,Gr12 and Gr23.
| N | C | H | Fe | O | Al | V | Pa | Mo | Ni | Ti | |
| Gr 5 | 0.05 | 0.08 | 0.015 | 0.40 | 0.20 | 5.5-6.75 | 3.5-4.5 | / | / | / | bal |
| Gr 7 | 0.03 | 0.08 | 0.015 | 0.30 | 0.25 | / | / | 0.12-0.25 | / | / | bal |
| Gr 9 | 0.03 | 0.08 | 0.015 | 0.25 | 0.15 | 2.5-3.5 | 2.0-3.0 | / | / | / | bal |
| Gr 12 | 0.03 | 0.08 | 0.015 | 0.30 | 0.25 | / | / | / | 0.2-0.4 | 0.6-0.9 | bal |
Why choose us？
Titanium is one of our main products. It gets unanimous praises from our customers in Korea, Japan, USA, German, Europe and so on. Because we have complete production facilities and advanced technology, all of our product can meet national and ASTM Standard.
