Torx cheese head titanium screw

What is the torx cheese head titanium screw?

The torx screw is a relatively uncommon type of screw. In fact, according to the production process and materials, it is no different from other cross screws. The only difference is that the torx screw is different from the installation tools used.

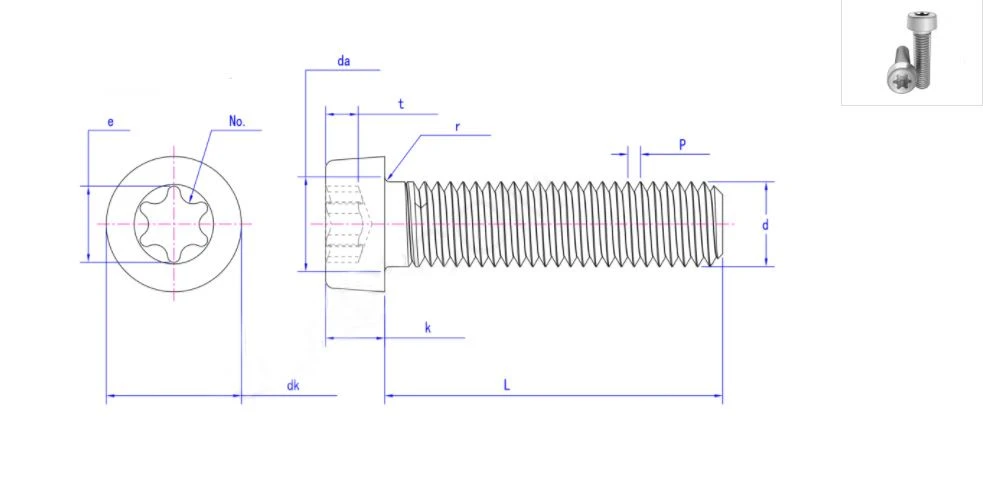

titanium torx head screw

d	p	b min	Dk		K		t
d	p	b min	max	min	max	min	max	min
M2	0.4	25	3.8	3.62	1.55	4.41	0.84	0.71
M2.5	0.45	25	4.5	4.32	1.85	1.71	0.91	0.78
M3	0.5	25	5.5	5.32	2.4	2.26	1.27	1.01
M3.5	0.6	38	6	5.82	2.6	2.46	1.33	1.07
M4	0.7	38	7	6.78	3.10	2.92	1.66	1.27
M5	0.8	38	8.5	8.28	3.65	3.47	1.91	1.52
M6	1	38	10	9.78	4.4	4.1	2.29	1.9
M8	1.25	38	13	12.73	5.8	5.5	3.05	2.66
M10	1.5	38	16	15.73	6.9	6.54	3.43	3.04

torx cheese head titanium screrw

Excellent performance and application of titanium bolts

Compared with steel, titanium fasteners have the characteristics of low density, high strength, good corrosion resistance, non-magnetic, non-corrosive, good biocompatibility, and non-toxic.

We produce alloy and non-alloy titanium bolts. They use different grades of titanium. TC4 (Ti-6Al-4V) is the most commonly used titanium alloy in titanium fasteners. It is suitable for high strength, light weight, corrosion resistance and non-magnetic And other required domain functions. For example, bicycles, motorcycles, automobiles, machinery and equipment, electronic fields, etc.

For unalloyed titanium, although its strength is medium, its corrosion resistance is far better than that of titanium alloys, so it is widely used in fields that require high corrosion resistance. Used in chemical equipment, pipeline connection, seawater purification and marine fields, etc. Representative titanium non-alloys are TA1, TA2, TA7 and TA12

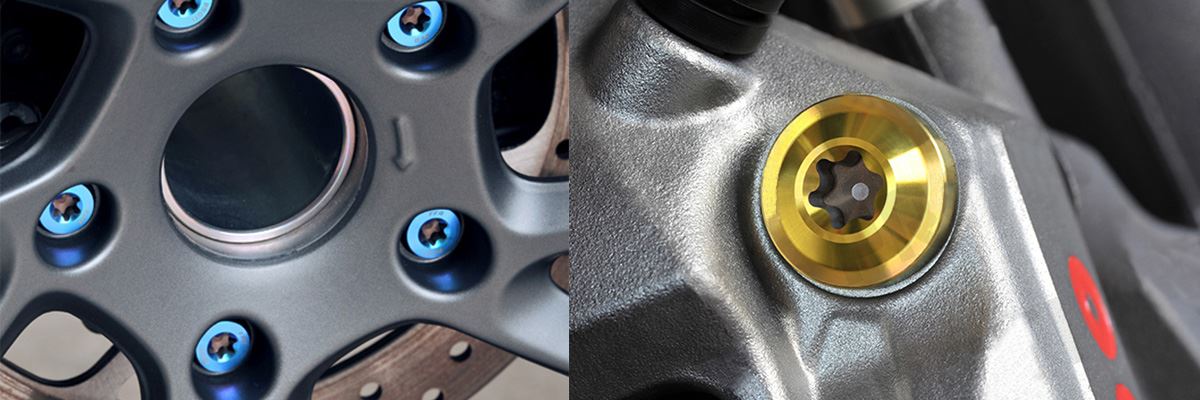

titanium torx cheese head screrw
