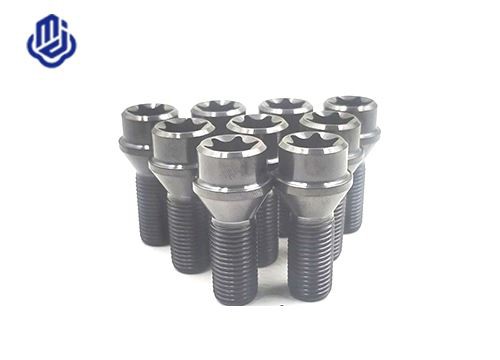

Titanium Wheel Bolts

What is titanium wheel Hub bolt?

Hub bolts are usually also called tire screws, pot wire, hub wire and so on.It is a high strength bolt that connects the vehicle to the wheel.The connecting position is the hub unit bearing of the wheel.Titanium Bolts wheels are one bolts that are used specially for automobile, it is designed a hex head with a washer and an enhanced conical round neck under head , standard full metric threads to end point . and a round inside hole in the centre of the head. We can do different size and the oxided coating with colors accoding to the customers requirements and drawings.

The first type is the most common nut.General Japanese car, American car basically all use this form of hub screw.On models with such nuts, the screws are attached to the axle flange of the car.To remove the hub, all we need to do is screw out the nut.It is also relatively easy and quick to install the hub.

The second kind is screw, also called bolt.General European cars include German cars (such as ABB, Porsche, Bentley, etc.), French cars (PSA, Renault) and Italian cars (Ferrari, Lamborghini, Fiat, etc.) using this form of screw.Screw the screw into the screw hole on the shaft head flange to tighten the hub.

Specifications and parameters of hub screws

If you see this parameter in the hub screw selection process: M12*P1.25.M (Metric) stands for screw metering sheets in English, usually in millimeters.The 12 after the M represents the diameter of 12mm;P stands for pitch, and 1.25 after P means that the pitch is 1.25mm.So we must understand the parameters of the original car to buy.

Here are some examples:

M12*P1.5 is suitable for: Toyota, Lexus, Honda, Mitsubishi, Mazda, Ford and other brands;

M12*P1.25 for: Nissan, Subaru, Suzuki, etc.;

M14*P1.5/M14*P1.25 is suitable for: Volkswagen Benz BMW, etc.

In addition to the length of the bolts and screws, this is relatively shallow.Just look at the length of how many mm, to match with the car and wheel hub can be.

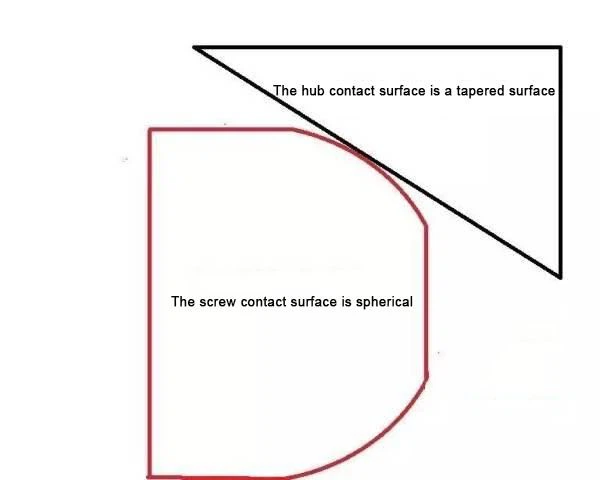

Type of contact surface of hub screw:

The contact surface of hub screw is divided into spherical surface and cone surface

The contact surface of the wheel hub of the original car is spherical, so the contact surface of the hub screw of the original car is spherical.But the modification of the hub should pay attention to, to see the modification of the hub of the contact surface is spherical or cone.Japanese brands (Rays /SSR/ Enkei/Work, etc.) and European brands (Oz, Italy) typically use cones with a 60-degree Angle on the wheel hub.American brand modified wheel hub is generally spherical, so be sure to match the proper screw installation.

If your hub is the contact surface of the cone, and you still insist on using the original spherical screw, then you can imagine that the contact area between the screw and the hub is very little, and the direct consequence of such a long time use is to damage the contact surface of the hub, forcing the plane into part of the spherical surface,The set of wheels, which could have been worth thousands of dollars, was destroyed.And at high speed by the external impact of the time, there are considerable safety risks.

The reverse is also true. If your hub has a spherical contact surface, you cannot use a cone screw.

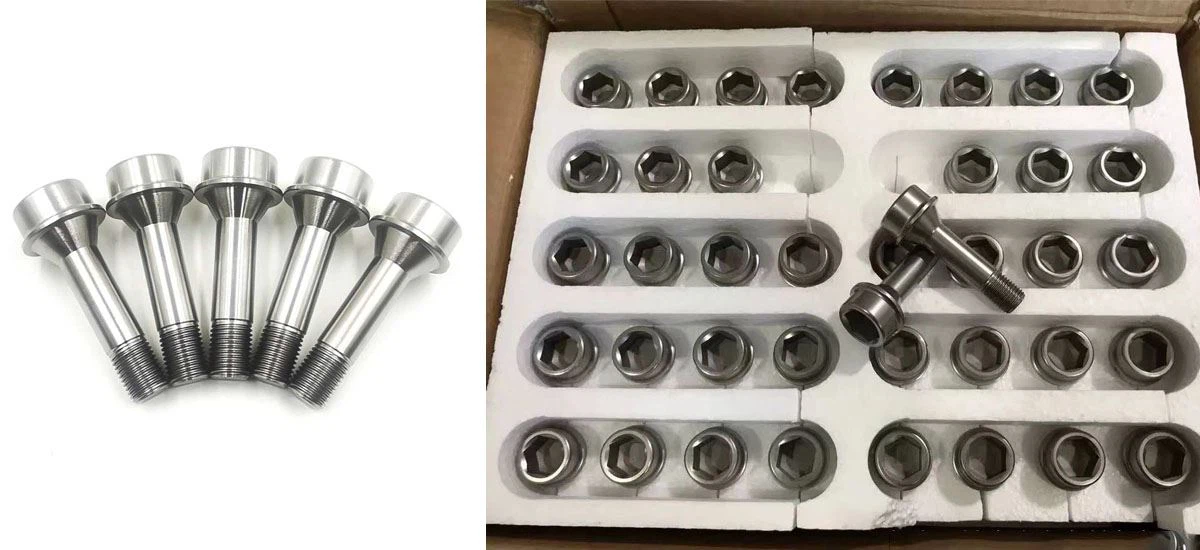

Titanium hub bolts
(1) Head details: the top of the head adopts concave design, breaking the flat top of the rigid bulky, more beautiful and delicate visually
(2) Advantages: it is used in the same shape as an ordinary one screw. Because the cone part is separated from the screw body, when tightening the screw, the cone part does not rotate with the screw, which can better protect the wheel hub from scratching.
(3) BMW hub screws 1 series 2 series 3 series 5 series 7 series X1X3X4X5X6 tire screws common screw bolts
BMW tire screw
3613 6781 151 M14X1.25
3613 6781 152 M14X1.5
3613 6781 150 M12X1.5

Titanium wheel bolts Advantages

1. High tensile strength
Bolts wheels are made from titanium with high tensile strength.

 2 . Light weight
Titanium bolts wheels are more light than normal carbon steel or stainless steel bolts .

 3. Not easy to be broken .
Titanium is one best hard material for bolts wheels.

4 . Easy installation.

5 . Free burrs or scratch.

6 . Resistant hgih or low temperature .

Baoji Titanium Products Co., Ltd. is a professional manufacturer of titanium and titanium alloy products with a 17-year history. The products are mainly used in automobiles, racing cars, aviation, ships, medical, chemical equipment and sports leisure outdoor products.
The main products are automotive titanium alloy wheel hub screws and nuts, automobile engine valve accessories, gear knobs and titanium alloy customized accessories: racing special half shafts, ball cages and other titanium alloy parts; civil aircraft flight recorder housings, customized aviation joints and titanium alloy accessories for drones, titanium alloy hardware accessories for sailboats and boats, surgical plastic medical products, diving self-defense equipment, and titanium alloy safety rings for outdoor mountaineering, etc. Chemical equipment and surface treatment equipment and other products.



Our factory & quipment



titanium wheel bolt

CNC machining

CNC machining

CNC machining

CNC machining

Hot and cold heading

CNC machining

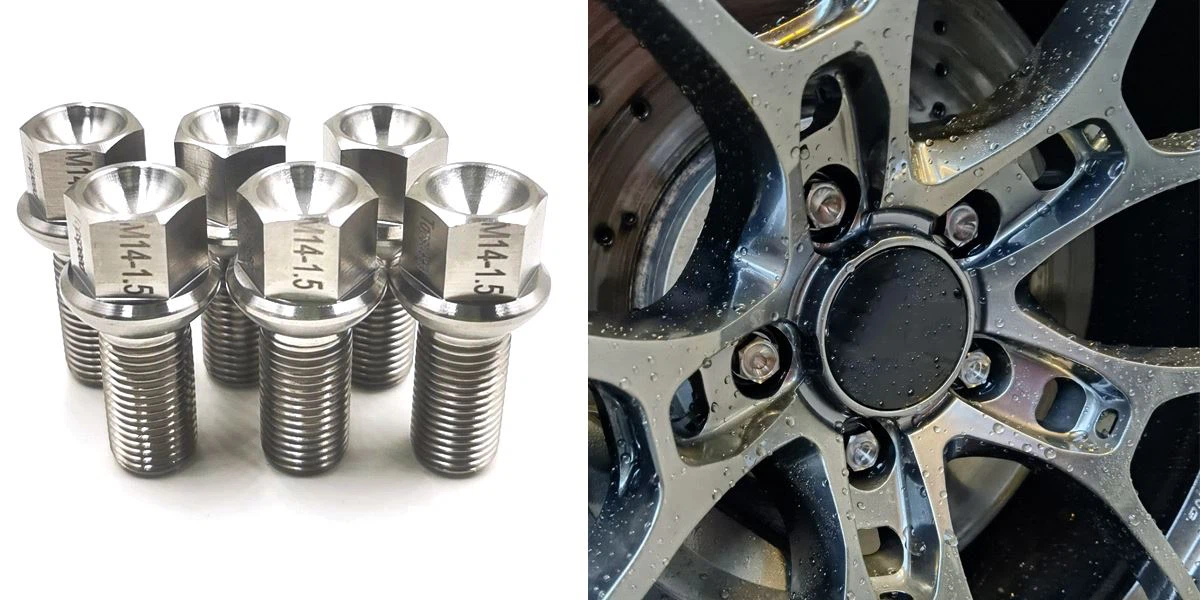

Titanium Wheel Bolts application.



Titanium wheel bolt used in Audi cars

Titanium wheel bolt used in Benz

Titanium wheel bolt used in Lamborghini

Titanium wheel bolt used in Porsche

Titanium wheel bolt used in Volkswagen

Titanium wheel bolt used in BBS hub

FAQ





01.Are titanium wheel bolts worth it?

For tuners who seek superior driving experience and vehicle performance, the performance and safety improvements brought by titanium wheel bolts are a very necessary choice.

02.What are the disadvantages of titanium wheel bolts?

The disadvantage of titanium wheel screws is that they are expensive. The scarcity of titanium metal leads to high material costs. CNC machining of titanium wheel screws requires a lot of labor costs. If mass production is carried out, the price of titanium wheel screws will be much lower.

03.Is titanium wheel bolt expensive?

We are the manufacturer of titanium wheel bolt. All wheel screws are priced at the factory. The price of M14*28mm titanium wheel bolt is USD5.8/piece

04.What material is the best for wheel bolts?

There are many types of materials for wheel bolts, up to thousands, but the safety of bolts used in cars is particularly important. Titanium wheel bolts play an important role in car assembly with their light weight and toughness.

05.How to choose the titanium wheel bolts?

The wheel screws on the wheels of different car models are different. If you don't know the size, please tell us your car model and we will recommend the appropriate titanium wheel bolt to you.
