Products Description
titanium anode for chlorinator electrolysis cell is the one part of the whole system that actually creates chlorine in the pool. Sodium chloride or common salt dissolved into the water passes through the cell. A small amount of electric current is made to flow into a parallel set of titanium plates inside the cell. These plates, covered with a metal called iridium, separate the sodium chloride molecules through electrolysis and produce hypochlorous acid, which is the same thing produced in a non-saltwater pool when chlorine (in the form of tablets, granular, or liquid) is added to water, keeping the pool sanitized.
| Substrate Material | Pure titanium in Gr1 or Gr2 |
| Coating Material | Iridium oxide + ruthenium oxide |
| Coating thickness | 8~20μm |
| Size | can be customized |
| Coating Area | Double sides |
| Shape | Solid plate |
| Number of plates | 7, 11, or customized; |
| Operating Life | 10000-18000 Hours |
| Current Density | <300A/m2 |
| Salt Concentration | 0.3~0.5% |
| Technology | Sand blasting, Acid washing and Brush Coating |
| Warranty | 5 years |
1.No more high costs for transport, storage and handling of chlorine gas or high concentrate commercial bleach;
2.Very effective against bacteria, fungi and viruses;
3.Lasting effect from hours to days as a result of depot action of the disinfectant;
4.Low energy consumption; powered by car battery or solar panel possible for many applications.
5.No harm for the environment, no pollution deriving from the transport of chlorine, no pollution when there is a leakage.
6.No harsh chlorine fumes or odors, no more red eyes or itchy skin caused by swimming in water rich in chlorine byproducts.
- reduces bacteria and virus presence to safe levels;
- Control marine organisms and slime growth in seawater fed systems
- Disinfect sewage and industrial effluents and water-cooling systems
- Reduce COD in sewage digester supernatant, sludge filtrates and concentrates
- Destroy cyanides and other oxidable chemicals in industrial process waters
- Produces pH friendly chlorine for your swimming pool
- Control legionnaire bacteria
The salt chlorine generator automates the process of chlorine production, making it more convenient for pool owners. The continuous generation of chlorine helps maintain a consistent sanitizer level, promoting clearer and safer water. But you do need to take care of your salt water chlorinator, as it can build up salt deposits over time.
In order to extend the life of your salt cell you must maintain proper water chemistry (balance pH, alkalinity, hardness, stabilizer) and clean the cell when deposits occur.
Salt water generators may have a larger up-front cost, but in most cases, pool owners spend significantly less on pool chemicals throughout the season.
After the up-front costs of installing a salt generation system, it can be very cost-effective to operate. Since you don't need to add chlorine every week (your salt is already in the water, and it stays there), your operating budget can be relieved a bit by using a salt generator. Salt cells do use electricity, but the amount of power consumed is nothing alarming.
Another benefit is consistency. Unlike liquid chlorine or tabs administered manually, salt generators consistently generate the same amount of chlorine.

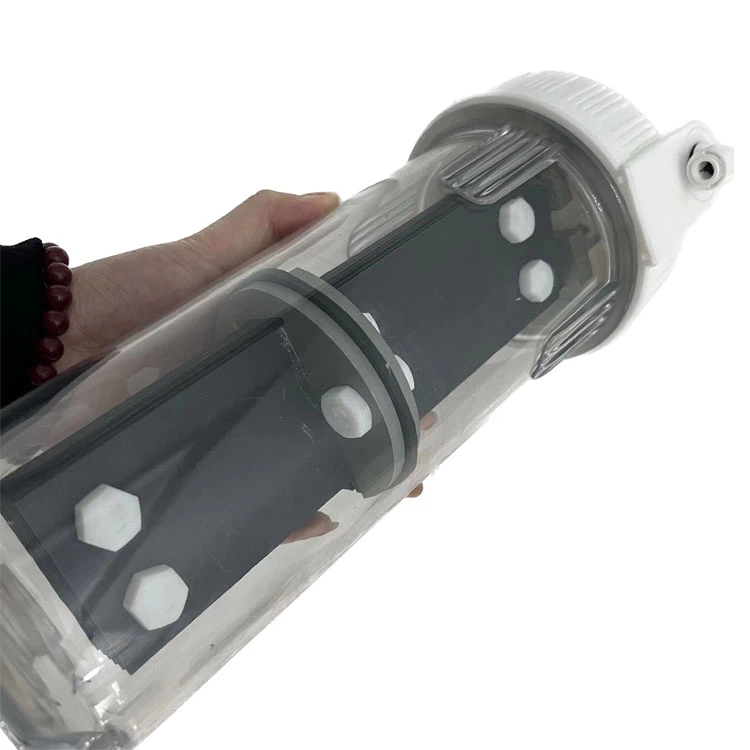

Products show
Company introduction
FOCUSED ON HIGH OUALITY TITANIUM MATERIAL
JM-TITANIUM has engaged in titanium anode manufacturing and research for 12 years, we have developed patented coating to provide extra long life anode. For salt chlorinator cell electrodes, JM-TITANIUM uses high grade pure solid titanium plate baked with noble metal oxide coating ensure the longevity of the cell providing cleaner and healthier water in your pool or spa for longer time and hassle free electrode cleaning if needed. With widest range of chlorinator cell electrode and the most experienced technical and engineering staff in the anode industry, JM-TITANIUM team continuously improve the titanium anode quality and cell optimization to improve the salt chlorinator life.
Product Process
Other production
which application can the titanium anode for chlorinator electrolysis cell be used?
Chlorinator systems are designed for disinfection of drinking- and swimming pool water, odor control of slime and marine growths in e.g. cooling water towers, circulating water and service water systems. It can also be found on board ships, in campers, in sport centers and health care facilities.
The Electrolytic Cell has two precious metal oxide coated titanium anode plates separated by insulators. A reversing DC voltage is applied to the cell and chlorine gas is produced without any calcium build up on the plates. These cells require no maintenance and have a clear cell case to enable the chlorine manufacture to be visible while operating.
Shipping and Packing
Transportation method
Express (DHL, Fedex, UPS, national special line) air transportation, sea transportation, land transportation, multiple ways to meet your needs
Port:
Tianjin, Shanghai, Qingdao or any other Chinese main port.
Lead Time:
2-15 days after payment confirmed.
Packaging Details:
1. Inside: Kraft papers, plastic bags, polyethylene foamed sheet;
2. Outside: packing: wooden box;
3. Or according to customer requirement.
