Products Description
titanium mesh weaving methods are mainly the following types :
1,plain weave : each titanium wire crosses the top and bottom of each latitude titanium wire. The diameter titanium wire is the same thickness as the latitude titanium wire. It is often woven at 90 degrees longitude and latitude. Plain woven mesh and square woven mesh contrast, plain woven mesh uniform size.
2,twill braid : each titanium wire crossed in every 2 weft titanium wire, each latitude titanium wire crossed in every 2 diameter titanium wire through the weaving method
3,dense weave : titanium wire and weft titanium wire titanium wire diameter is different, the mesh number is different, characterized by thin weft dense, thick weft fine.
4,Double titanium Dutch weave: This weaving method is very similar to the knitting method of twill Dutch weave. This titanium wire cloth is mostly used for filtering at the micron level
5,mat twill weaving : each diameter titanium wire crossed in every 2 latitude titanium wire, each latitude titanium wire crossed in every 2 diameter titanium wire through the weaving method
| Name | Titanium mesh |
| Material | GR1 GR2 GR5 GR11 |
| Wire diameter | 0.05-8mm |
| Material surface | 1. Black (graphite emulsion coating) 2. Bright (no coating, titanium primary color) |
| Mesh | 0.5-600mesh |
| Knitting method | plain, twill, ginning, dense, knitted |
| wide | 6-5000mm |
| length | 1000mm-5000mm |
| Packing method | The interior is packed with anti-collision foam, and the exterior is packed with carton |
| Production time | The production time of small quantities of goods is not more than 10 days, and the production time of bulk goods is 15-20 days |

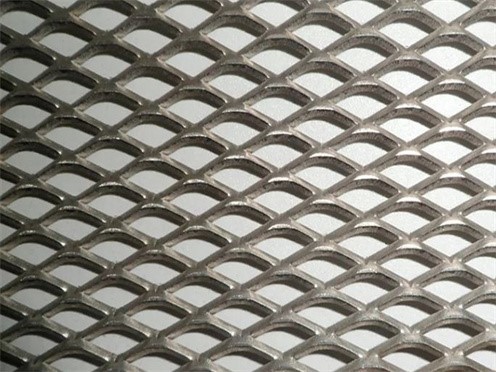

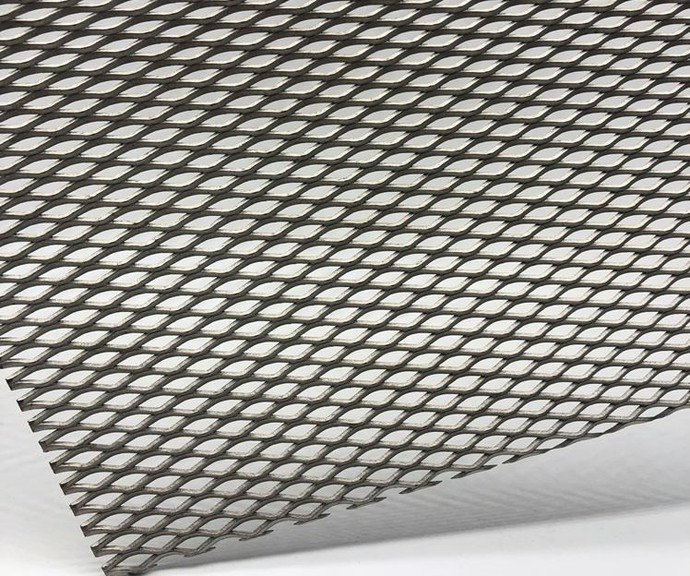

Product display
The difference between titanium mesh and stainless steel mesh
USE
The specific applications of titanium mesh include high temperature filters, Marine manufacturing, chemical filters, mechanical filters, electromagnetic shielding nets, seawater desalination filters, high temperature electric furnace heat treatment support nets, etc.
Stainless steel mesh is widely used in various industrial fields, such as screening, filtration, protection and so on, because of its good processability and diversity.
Weaving method
There are several ways to weave titanium mesh. Plain weave has the same warp and weft diameter density, while twill weave uses a thicker wire diameter for applications requiring high strength. Stainless steel mesh weaving methods also include plain and twill, but the specific application may vary according to demand.
Product advantages
1.Low Density and High Strength
2.Excellent Corrosion Resistance
3.Good resistance to high temperature
4.Excellent Bearing to cryogenic property
5.Good thermal properties
6.Low Modulus of Elasticity
7.Toughness, light weight
8.High property of acid and alkali resistance
In the environment of corrosion-resistant medium, a layer of dense, strong adhesion and inert oxide film is formed on the surface of high-purity titanium mesh, resulting in passivation, which protects the titanium mesh substrate from corrosion, so as to achieve strong corrosion resistance; Especially in the following use environment, the corrosion resistance is better, such as seawater, wet chlorine, chlorite and hypochlorite solution, nitric acid, chromic acid metal chloride and organic salt, etc
Packaging and transportation
Anti-collision foam packaging is used inside, and carton packaging is used outside
Support the use of four international express transportation
