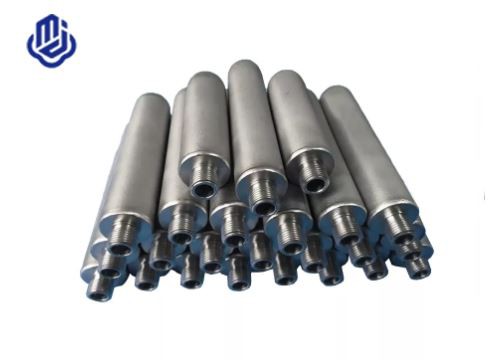

Titanium filter element is a new type of high-efficiency porous filter material made of metal titanium powder as raw material through powder classification, molding, sintering, mechanical welding and other processes. It is widely used in the fields of self-lubrication, filtration, separation, catalysis, flame extinguishing, heat exchange, thermionic generation and gas distribution.
Main application: used for gas and liquid filtration and gas distribution, etc. Filtration precision: 0.22～50μm Diameter: 30～80mm Length: 100～1000mm (special specifications can be customized)
Filtration principle: Titanium filter element is a titanium metal porous filter material made by powder metallurgy. Its internal pores are curved and crisscrossed, and the pore size distribution is uniform. The filtration mechanism is typical deep filtration.
Performance: This product has excellent properties such as corrosion resistance, high temperature resistance, high strength, easy to ensure filtration accuracy, and easy regeneration. The temperature can reach 500 ~ 600 ℃; it is suitable for the filtration of various corrosive media, such as: hydrochloric acid, sulfuric acid, hydroxide, seawater, aqua regia and iron, copper, sodium and other chloride solutions. It has excellent mechanical properties and can be machined for cutting, welding, etc. It has high compressive strength and internal pressure failure strength of up to 2MPa or more; its filtration accuracy is easy to ensure, and the aperture will not be deformed even if it works under high temperature and high pressure. The porosity can reach 35-45%, the pore size distribution is uniform, the dirt holding capacity is large, and the regeneration method is simple, and can be reused after regeneration.
| Product name | Porous sintered stainless steel filter /titanium powder sintered filter |
| Porosity | 28%-50% |
| Aperture(μm) | 4-160 |
| Filtration precision(μm) | 0.22-140 |
| Material quality | S304 / S304L / S316 / S316L |
| Compressive strength | 3Mpa/cm2 |
| Shape | Plate, flakiness,disc,ring,bar,cone |
| Property | 1) Channel crisscrossed, High temperature resistance,resistance to thermal shock. 2) Corrosion resistant,applicable to a variety of acid alkali and corrosive medium,Stainless steel filter can resist the corrosion of acid and alkali and organic matter, especially suitable for sour gas filtration. 3) High strength, good toughness, suitable for high pressure environment. 4) Weldable,easy loading and unloading. |
| Work environment | Nitric acid, sulfuric acid, acetic acid, oxalic acid, phosphoric acid, 5% hydrochloric acid, molten sodium, liquid hydrogen, nitrogen, hydrogen sulfide, acetylene, water vapor, hydrogen gas, carbon dioxide gas |
Advantages
1.uniform structure, narrow pore size distribution, high separation efficiency.
2.high porosity, filtration resistance, high penetration efficiency.
3.high temperature, generally below normal 280 degrees.
4.good chemical stability, acid corrosion, has antioxidant properties.
5.no particle shedding, not to dope the formation of secondary pollution, comply with food hygiene and pharmaceutical GMP requirements.
Applications
1. Pharmaceutical Industry
Active pharmaceutical ingredients, such as solvent solution, decarburization filtration of material filtering.Pharmaceutical industry infusion, injection, oral liquid concentration with link of the decarburization filtration and security filtration for the dilute with terminal filter.
2. Chemical Industry
The liquid of chemical industry products and raw materials, and the decarburization filtration of material and precision filtration of pharmaceutical intermediates. Superfine crystal,the filter recycling of the catalyst, the precision filtration and heat conduction oil system after absorption of resin.Removing the impurities in the materials, and the catalytic gas purification, etc.
3. Electronic Industry
Electronic, Microelectronics, semiconductor industrial water filter, etc.
4. Water Treatment Industry
It can used in the security filter SS housing as the pre-treatment for UF, RO, EDI system, the filtration after the ozone sterilization and the ozone after aeration.
5. Sewage Treatment
The micropore pure titanium aerator compared with the normal aerator, the energy consumption of the micropore pure titanium aerator is lower 40% than the normal aerator, the sewage treatment is nearly doubled.
6. Food Industry
The beverage, wine, beer, vegetable oil, soy sauce, vinegar clarification filtration.
7. Oil Refining Industry
The oiled field water filter,and the security filter SS housing before the reverse osmosis in desalination field
