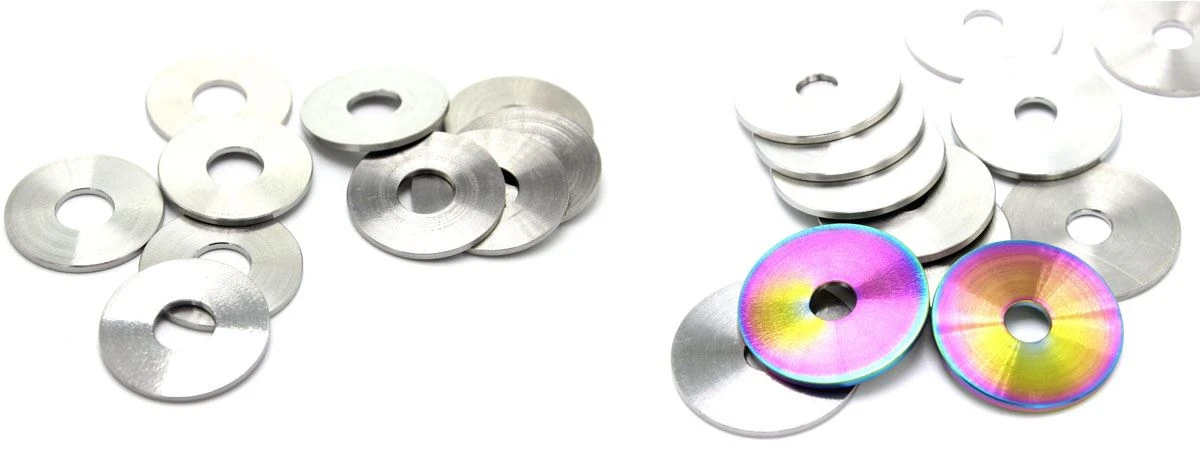

Titanium Flat Washer

What is titanium flat washer?

The part that is cushioned between the connected piece and the nut. Generally, a flat metal ring is used to protect the surface of the connected part from being scratched by the nut and disperse the pressure of the nut on the connected part.

Flat washer,Flat washers are generally used in connecting parts, one is soft and the other is hard and brittle. Its main function is to increase the contact area, disperse the pressure, and prevent the soft texture from being crushed.

Product name	GR2 GR5 Custom Titanium flat washer for car washer
Keyword	Titanium flat washer for car washer
Material	TItanium
Grade	GR5( In addition to it, you can choose the level you like)
Density	4.51g/cm3
Standard	DIN127
Colour	Titanium primary colors
Technique	CNC Machining
Surface	Polished/Pickling

Hot sale size list

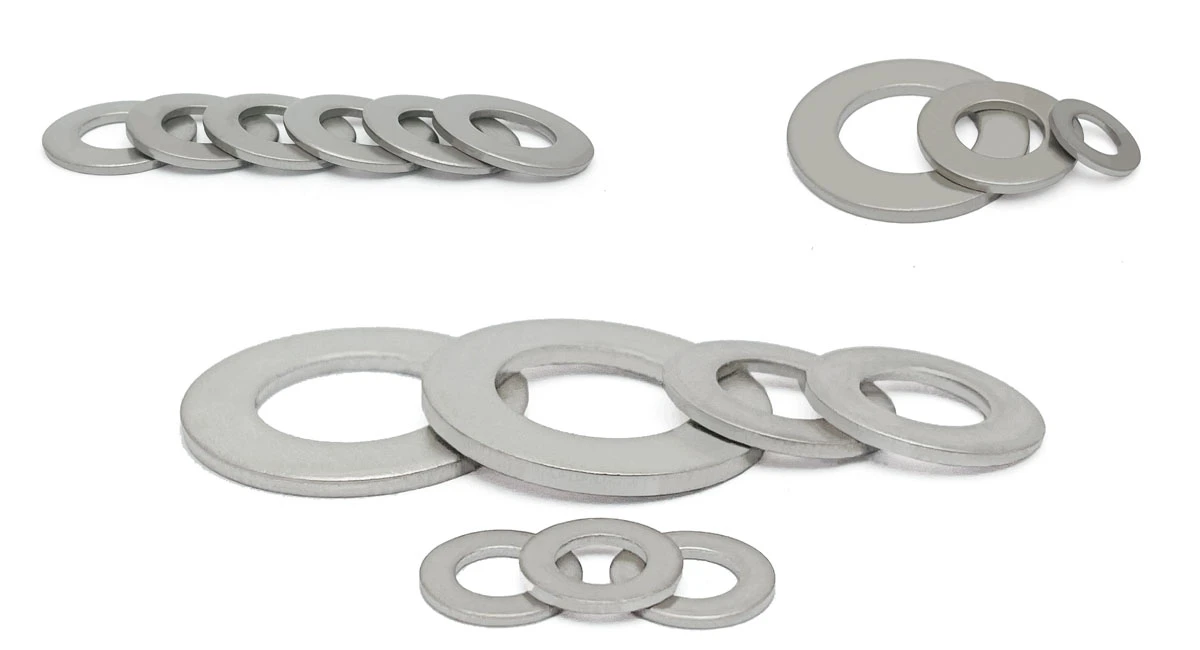

M4 M5 M6 M8 M10 Titanium Flat Washer
Size: M4 5 6 8 10mm
Material: 6AL/4V(TC4)Titanium Alloy,Grade 5
M4 Outer Diameter: 7mm, Inside Diameter: 4mm, Thickness: 0.8mm
M5 Outer Diameter: 8.5mm, Inside Diameter: 5mm, Thickness: 1mm
M6 Outer Diameter: 10mm, Inside Diameter: 6mm, Thickness: 1mm
M8 Outer Diameter: 13mm, Inside Diameter: 8mm, Thickness: About1.5mm
M10 Outer Diameter: 16mm, Inside Diameter: 10mm, Thickness: 1.7mm
M10-2  Outer Diameter: 20mm, Inside Diameter: 10mm, Thickness: 2mm(Only for M10 flange bolts)

Flat Washer Function :
1:Increase the contact area between the screw and the machine.
2. Eliminate the damage to the machine surface caused by the spring pad when removing the screw. When using, it must be a spring pad and a flat pad. The flat washer is next to the machine surface, and the spring pad is between the flat pad and the nut.
