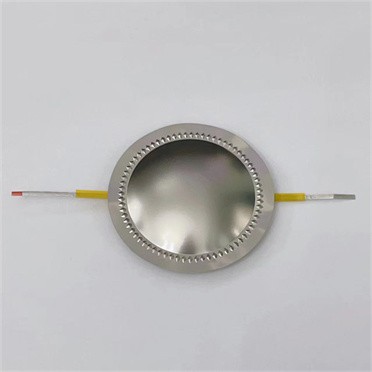

Products Description
Titanium Replacement diaphragm is made of pure titanium foil processing, thin and affordable, is widely used in all kinds of tweeters, titanium diaphragm frequency response is high, rich in detail, beautiful sound quality, flat line sound more delicate. Titanium diaphragm is clear and transparent, suitable for appreciating some symphonies, pop songs or dj dance music, and it bears large power, so the general performance environment, singing and dancing environment is more used.
| Voice coil size | 25.2mm,34.4mm,44.4mm,51.5mm,72.2mm,74.5mm,99.2mm |
| Diaphragm outer diameter | 38mm/52mm/61.5mm/70mm/80mm/91mm/98mm/116mm |
| Diaphragm Material | Pure titanium foil |
| Pressed pattern | Single ring shape/Star pattern shape/Double ring shape/Spiral shape/Sun shape/Large diamond shaped/small diamond shaped/Leaf shape/earth shape/Circular dot shape/Dashed line shape/Twill pattern shape/Trapezoidal shape |
| Diaphragm color | silver/blue/golden |
| Thickness | 0.03mm/0.04mm/0.05mm9Can be customized according to your choice) |
| Diaphragm dome height | 4.5mm/5mm/5.93mm/7mm/7.5mm/8.5mm/10mm/10.5mm/11mm/12mm/13.4mm/13.8mm/15.5mm/18mm/19.5mm |
| Delivery date | Delivery of less than 1000 pieces within 10 days More than 10000 pieces can be delivered within 30 days |
| Packing method | Carton packing |

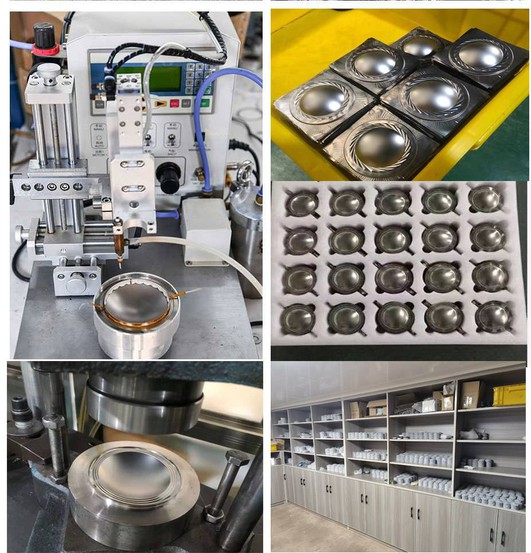

Picture display
Application scenario
Mid to low end audio system
Home theater
Car audio
HIFI audio
Stage sound
Recording STUDIO
Company profile
Baoji Dynamic Trading Co., Ltd
Our company is a professional manufacturer of speaker accessories, titanium diaphragms, and titanium materials. Speaker replacement diaphragm accessories include: 25.2mm, 34.4mm, 44.4mm, 51.5mm, 72.2mm, 74.5mm, 99.2mm and other sizes. Titanium materials include titanium plates, titanium rods, titanium tubes, titanium foils, titanium wires, titanium standard parts, etc. Our factory has a complete production line and professional technicians and researchers. Our company can provide sample service to test products before placing large orders.
-
100 +Factory workers and R&D personnel
-
24 hoursCustomer service staff respond quickly

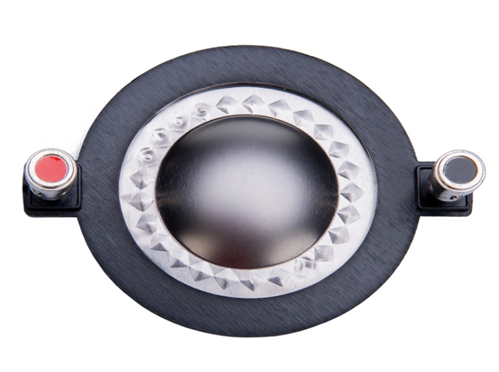

Related products
How to replace the speaker titanium diaphragm? Do you know?
1. Remove the old membrane.
The first step is to remove the old membrane. A cut is made on the suspension horizontal plane, followed by another cut on the cross shaft horizontal plane (rear suspension), followed by a rotation.
2. Seal the air gap with tape
Take care to plug the air gap (the slot that holds the coil) with tape to prevent dust from falling inside. The jack of this speaker is very wide. This is not the case with smaller models.
3. Scrape off residue with a knife.
The glue and remaining film must then be scraped off the external suspension and cross shaft. It's long and it creates some dirt.
4. Insert a piece of adhesive into the air gap.
After scraping, we wipe the bowl, which can then remove the protective adhesive. Check that no dust remains in the air gap. A strip of tape folded in half, through the middle, can accumulate residue.
5. Place the membrane in place.
The membrane can then be placed in place. It's easy to center. Insert the gasket supplied with the speaker
6. Glue external hangings.
Once the membrane is well centered, we can attach the outer suspension with neoprene glue (drying time is approximately 4 hours).
7. Glue the cross axis
The cross axes must then be glued. It's not very convenient even on such a large speaker.
8. Glue on the dust cover
The dust cover is also glued to the neoprene. It does not support any mechanical stress. Therefore, it is necessary to focus on the aesthetics (centered, the right amount of glue). Do the same for the outer seal.
9. Weld the cable to the wiring panel
You will still need to solder the cable to attach it to the patch board...... That's it. It's over. You'll get a new speaker
10. Wait 8 hours and then reconnect the speaker.
Wait about 8 hours for the adhesive to stabilize before reconnecting the speaker. Running-in is necessary to soften the suspension. It takes about 50 hours.
