Name: Sintered Porous Titanium Plate
Brand: Jmyun
SKU: 179875321

Products Description

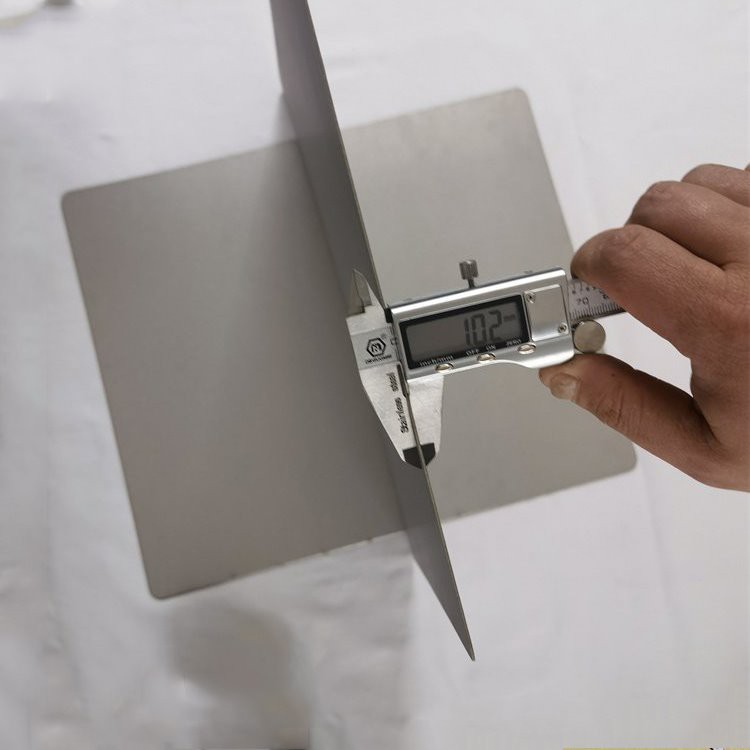

What is sintered porous titanium plate?

High purity sintered porous titanium plate titanium powder (99%) sintered under high temperature . Sintered porous titanium plate is made of grade A industrial pure titanium powder, which is sintered and rolled at high temperature. The maximum specification can reach 1000*2000mm.. Suitable for solid / liquid / gas separation and purification in low -viscosity liquid material (with rigid particles )

Specifications:

1.Diameter : φ5mm-300mm (or as your request)

2.Thickness :0.5mm-10mm (or as your request)

3.Filtering Rating : 0.5um-50um

Technical Data:

Production	Diameter Length	Diamete Width	Thickness	Customized
Sintered porous round discs	Maximum diameter φ800mm	3737102	0.5-30mm	YES
Sintered porous sheets	Maximum 800mm	Maximum 350mm	0.5-30mm	YES
Sintered porous tubes	Maximum single piece 1200mm	Outer diameter maximum φ200m	Wall thickness 2-10mm	YES

Filtering precision

Porosity

Permeability

(m3/h.m2.kpa)

Compressive strength

Max. differential Pressure

0.5um - 50um

20-50%

3~800

2~3 Mpa

0.6Mpa

What is the porosity of sintered porous titanium plate and its impact on material properties?

The porosity of sintered porous titanium plates is generally between 50% -80%. The impact on the material needs to be optimized according to the customer's usage environment and requirements to achieve the customer's ideal usage effect.

Sintered Porous Titanium Plate advantage

Application

Sintered Porous Titanium Plate with its unique properties can be widely used in the pharmaceutical industry, water treatment industry, food industry, biotechnology, chemical industry, petrochemical industry, metallurgical industry and gas purification, is a new filter with broad development prospects.Typical functions include:

Sintered Porous Titanium Plate application

Feature:

1 This material has different aperture and filtration accuracy (0.2um 80um), the channels criss-cross, high filtration and separation efficiency.

2 High temperature resistance to cold and heat is suitable for the use of -200 1000 temperature range.

3 Corrosion resistance. Suitable for a variety of acid and alkali and other corrosive media deep separation and fine filtration .

4 With certain metal or alloy characteristics can absorb energy, noise, heat resistance, shockproof buffer heat conduction, conductivity, high toughness, good. Suitable for high pressure environments. Welding and simple mechanical processing, easy to load and unload.

Company information

Baoji Dynamic company is a modern private technology-based enterprise integrating R&D, production and sales. The company specializes in the production of tubular, plate, special-shaped electrodes and filter elements such as porous titanium, porous stainless steel, and porous nickel-based alloys. The company's annual output is about 20,000 square meters of porous titanium plates and porous stainless steel plates of various specifications; more than 30,000 filter elements of various types. Products are widely used in new energy, environmental protection, petroleum, chemical industry, metallurgy, aerospace, electronics, electrochemistry, medical equipment, catalysis, disinfection and other fields, providing certain support and contribution to the national new energy strategy and environmental protection purification.

The company produces porous metal components of various precisions and specifications in strict accordance with national standards, and can design and produce porous materials and components of corresponding specifications and models for different needs of domestic and foreign customers. At the same time, the company has been operating various types of titanium plates, titanium tubes, titanium rods and titanium standard parts for a long time.

Company tenet: quality-oriented, integrity is gold, coordinated development, mutual benefit and win-win

Welcome new and old customers to work together and make friends.

Our factory & quipment

Professional quality, first-class quality

CNC Machine Tools

Sintering rolling

Grinding and polishing

Other products

The titanium product series mainly includes: titanium filter element, titanium aeration head, titanium filter plate, external light titanium rod filter element, blue titanium filter element, stacked titanium filter element, etc.

Other sintered metal products
