Name: Anodizing Titanium Rack
Brand: Jmyun
SKU: 168897187

Products Description

Anodized titanium hangers are commonly used in industry and can be used in processes such as chrome plating and copper plating. The principle of its production is to form an oxide film on the surface of titanium, which improves the corrosion resistance of titanium and also has a higher load capacity and service life.

When using anodized titanium hangers, the hangers need to be installed on the surface of the parts, and then the parts are treated with plating solution. During use, attention should be paid to the stability and reliability of the hangers to ensure the quality and effect of the plating solution.

Anodizing Titanium Rack
(1) Good electrical conductivity
(2) Reusable: there is no need to remove the mill twice after use.
(3) Good strength and toughness, not easy to damage. Note: Titanium hanger hardness is relatively high, in the clamping product, pay special attention to prevent scratching.
(4) Can be made into colorful hanging tools, very good-looking.

Products Size

Product name	Titanium Anodizing Rack
Grade	GR1 GR2 titanium
Parameter	Current density≤2000A/M2 Temperature<65°C PH 0.1~14 Max content of Fluoride ion is 200PPM
Shape	Different dimension and shape is available,or according to customer's drawing
Size	Tooth：15/20/30/36/42 etcThickness:1.5mm/1.8mm/2.0mm etc Outer diameter:225mm/252mm etc
Features	1) Anti-corrosion 2) Light weight 3) High magnetic 4) Long lifespan

Products Precautions

Notes for Anodizing Titanium Rack device:

1. The distance between the titanium rack and the surface of the hanger should be about 30mm, and the distance between the bottom and the bottom of the groove should be about 180mm.

2. The electric liquid added should be 30mm away from the titanium hanger, and the solubility should not be too high.

3.If the weight exceeds the range, the titanium hanger will be deformed or damaged.

4. The lifting rod should be more than 90mm away from the liquid level, so as to bear the weight and unloading strength of the whole titanium hanger.

Material: Titanium Gr1, Gr2, Gr3, Gr4 --- pure commercial grade titanium for industry

Anodizing Titanium Rack are useful where the output is large and even for distribution of electric current. Other advantage uses are · a good deal of saving in labor, time and ensures speedy loading · increasing productivity · reducing production costs.

Jigs can be designed, fabricated and insulated according to customers' requirements.

Products Process

Anodizing Titanium Rack, mainly have multiple clamping elements fixed on a support frame, and the clamping elements are provided with a contact pressure part, which can be used to position the workpiece. The support frame is made of titanium, and the clamping elements and the contact pressure part are made of titanium metal. The surrounding surfaces of the support frame and the clamping elements are covered with a high temperature resistant, acid and alkali resistant coating, and the surrounding of the contact pressure part is exposed.

A titanium hanging device for electroplating, comprising two columns arranged relatively and a hanging beam arranged between the two columns, with hooks fixed on the hanging beam, characterized in that each column comprises left and right columns hinged to each other at the top and connected to electrodes, and the lower ends of the left and right columns are connected by arc-shaped adjustment plates for adjusting the opening angle of the left and right columns.

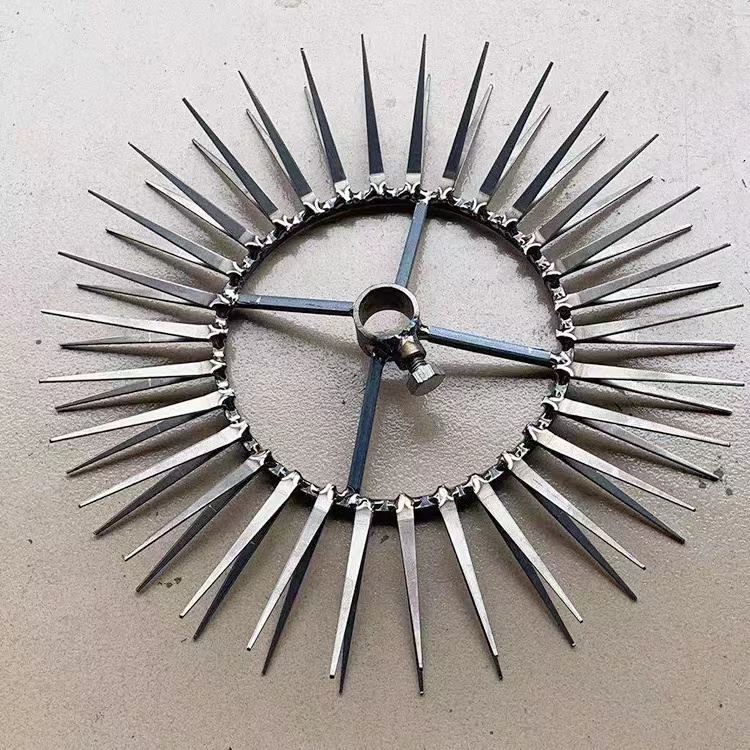

Titanium disc size

Products Application

Anodizing Titanium Rack are widely used in the electroplating industry, especially in high-demand situations such as precision electronic electroplating, hardware electroplating, etc.
In the chemical industry, titanium hangers are often used to fix workpieces or equipment in some highly corrosive environments.
In the aerospace field, they are also used for surface treatment of some special parts.

Titanium disc
