What is titanium seamless pipe?
Titanium alloy seamless pipe is a kind of titanium alloy material made of a hollow section, no joints around the long strip pipe.It was originally used to make compressor parts for aircraft engines and structures for rockets, missiles and high-speed aircraft.Since the mid-1960s, it has been gradually applied to the electrolysis industry electrode, the condenser of power station, the heater of petroleum refining and seawater desalination, and the environmental pollution control device and other general industrial manufacturing fields.
| Product name | Seamless titanium tub |
Standard | ASTM B861，ASTM B338 |
Material | Pure titanium/Titanium alloy |
Grade | Gr1，Gr2，Gr5，Gr7，Gr9，Gr10，Gr12 |
Feature | Fine Corrosion Resistance/Light |
Technique | Seamless |
Application | Industrial, Heating Exchanging, Condenser, Medical, Chemical, Aerospace, Oil, Sports, Bike etc |
Tolerance | OD（±0.1-0.2）mm,Wall thickness(±10%) Length（±10）mm |
Outer Diameter | Φ7-158 mm |
Length | ≤18000mm |
Surface | Pickling，Polished |
Package | Ply-wooden case, carton box |
Supply Ability | 500 Ton/Tons per Month |
Shape | Round |
Tensile strength | Yeild strength | Elongation | |||
MPa | kis | Min Mpa | Max Mpa | % | |
Gr 1 | 240 | 35 | 20(138) | 45(310) | 24 |
Gr 2 | 345 | 50 | 40(275) | 65(450) | 20 |
Gr 7 | 345 | 50 | 40(275 | 65(450) | 20 |
Gr 9 | 620 | 90 | 70(483) | ... | 70(483 |
Gr12 | 483 | 70 | 50(345) | ... | 18 |
Outside diameter, in.(mm) | Diameter tolerance, in.(mm) | Permissible variations , wall thinckness, t, % in.(mm) |
<1 (25.4) | ±0.004( ± 0.012) | ±10 |
1-1½(25.4-38.1) | ±0.005( ±0.127 ) | ±10 |
1½-2(38.1-50.8) | ±0.006( ± 0.152) | ±10 |
2-2½(50.8-63.5 | ±0.007( ± 0.178) | ±10 |
2½-3½(63.5-88.9) | ±0.010( ± 0.254) | ±10 |

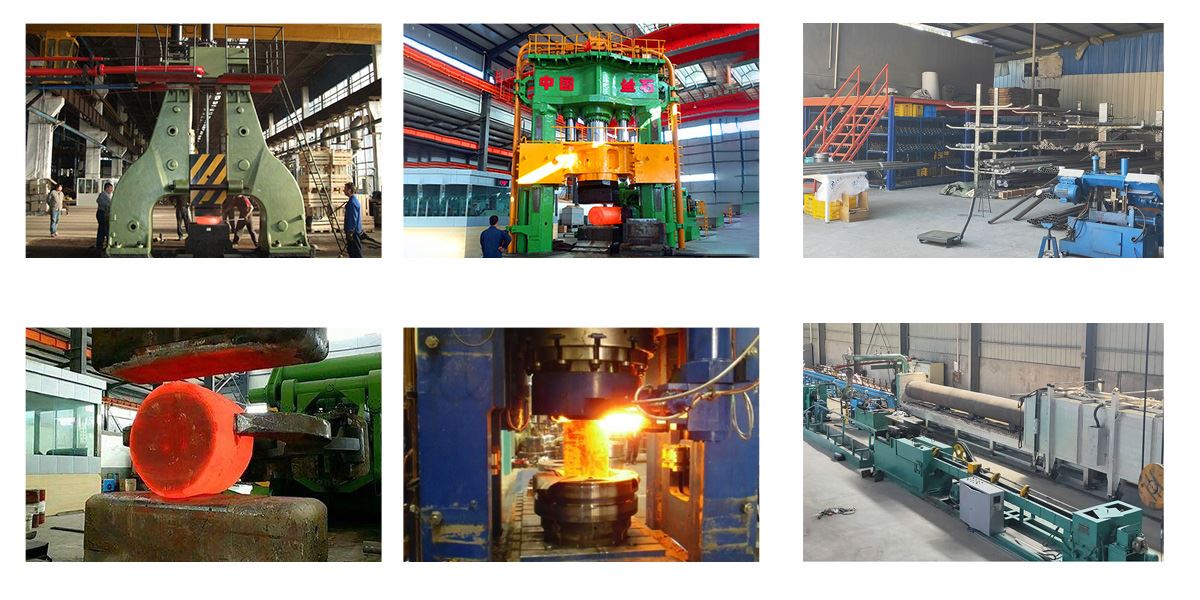

Seamless titanium tube production process
Titanium sponge—Compacting electrodes—melting—Forge—Bar billets—Extruding—Rolled—Straightening—Seamless tube
Package
1>Each tube is wrapped in plastic film
2>Put it in a wooden box
3>Place fillers such as pearl cotton around to ensure that the pipes do not shake safely during transport
Why Choose Us?
Excellent titanium experts and professional production lines
Leading titanium manufacture in China
Titanium Product Technology Solution Provider
Cost control-manufacturing and exporting by ourselves
Competitive price-without middleman
Strict quality control system
