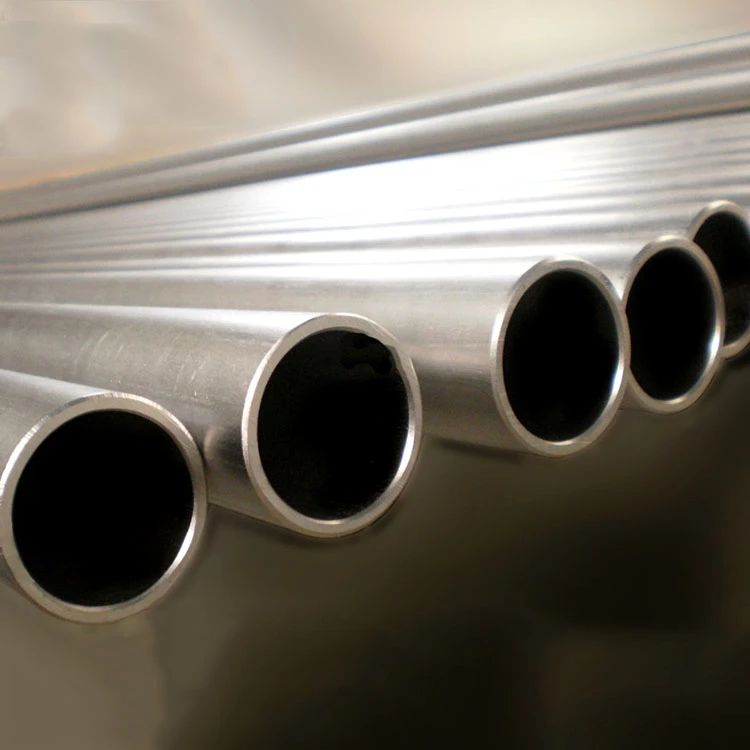

Product name: Molybdenum tube
Brand: Mo1, Mo2.
Specification: 5--180x1--60x length
Processing method: forging, sintering, pressing
Standard: GB/T 4188--84. GB/T 4186-84
Condition: polished surface, alkali wash surface
Uses: conductivity tube, sintering tube, thermocouple protection tube, high temperature shielding material and solar photovoltaic coating target material, etc.
Molybdenum tube has good high temperature resistance and can be used continuously for more than 4000 hours at 1800 ℃ in vacuum environment. Molybdenum tube is widely used in electric vacuum industry, can be used as heating tube, high temperature environment cooling tube, high temperature environment protection tube and so on. Large molybdenum tube can be used as ring target, furnace liner, small molybdenum tube instrument parts.
The types and processing methods of molybdenum tube are: deep hole drilling molybdenum tube, sintering molybdenum tube, welding molybdenum tube, molybdenum coil tube, molybdenum tube drawing. Sintered molybdenum tube is used to produce large molybdenum tube, which is mainly used in smelting equipment, furnace tube, annular target material, vacuum heating chamber, etc. The maximum specification can be 1200mm in diameter; Molybdenum tube welding is used for equipment parts with no strict requirements on size. Vacuum welding is used. The size should not be too large, with the diameter of 8-500mm. Pull molybdenum tube production and supply complex, used to produce small molybdenum tube, specification diameter 1.0-6mm.
Factory Price Molybdenum Tube description
Diameter < 6mm tolerance ±0.1mm
Diameter 6--30mm tolerance ±0.2mm
Diameter 30--120mm tolerance ±0.3mm
Diameter 120--400mm tolerance ±0.5mm
Diameter 400--1000mm tolerance ±0.8mm
Factory Price Molybdenum Tube
1. Production process:Molybdenum powder - pressing - sintering - forging hammer - technical processing - finished product inspection - packaging - delivery.
2. Application: molybdenum tube target used in TFT-LCD display. And the sputtering rotating tube target used in the coating of copper indium gallium selenide CIGS and cadmium telluride CdTe two thin film solar cells. The 25.4*998 molybdenum tube used in the heat exchanger in the vacuum furnace. And other specifications of molybdenum tube.
3. Packing: Pack it with moisture-proof paper first, then wrap it with kraft paper, put it in a foam wooden box padded around it, and seal it well.
